Handheld spectrum analyzer Anritsu MS2080A-0706 (9 kHz – 6 GHz)

Name: Spectrum analyzer Anritsu MS2080A-0706
Brand: Anritsu
SKU: 1020002
Availability: BackOrder

NoveltyExpert selection

Handheld spectrum analyzer up to 6 GHz Anritsu MS2080A-0706

Anritsu MS2080A together with Anritsu MA2700A antenna holder

Anritsu MS2080A screen in interference source search mode

Anritsu MS2080A screen in real-time spectrum analysis mode

Anritsu MS2080A screen in classic spectrum analyzer mode

Anritsu MS2080A together with Anritsu S331P antenna analyzer

Anritsu MS2080A together with Anritsu MA24340A power sensor

On order

Product code: 1020002

Price on request

Main characteristics

Manufacturer:

Anritsu (Japan, USA) Official representative
Category:

Spectrum analyzers
Series:

Anritsu MS2080A
Spectrum analysis:

9 kHz – 6 GHz
Spectrum analyzer type:

Swept-tuned Real-time
Signal analysis bandwidth:

20 MHz 40 MHz
Real-time analysis bandwidth:

20 MHz 40 MHz
Maximum amplitude:

+30 dBm
Average noise DANL:

-161 dBm -167 dBm
SSB phase noise:

-95 dBc/Hz -97 dBc/Hz
RF power measurement:

50 MHz – 6 GHz 10 MHz – 8 GHz
Operating temperature:

From -10°С to +55°С
Width:

290 mm
Height:

212 mm
Depth:

96 mm
Weight:

3.8 kg

Product description

The Anritsu MS2080A-0706 is a handheld spectrum analyzer with a frequency range of 9 kHz – 6 GHz and a wide range of additional capabilities. In addition to the classic spectrum analyzer, the following are available: real-time analysis (with a bandwidth of 20 and 40 MHz), vector signal analysis (with a bandwidth of 20 and 40 MHz), analysis of antennas and radio frequency cables, accurate measurement of RF and microwave power, search for sources of radio interference, mapping coverage areas on a map and much more.

The standard capabilities of the analyzer can be significantly expanded with the help of additional options and accessories, which are listed below on this page in the relevant sections. Model MS2080A-0706 is part of the Anritsu MS2080A series.

For more information about this product, see the Anritsu MS2080A series page

Contents of delivery

handheld spectrum analyzer Anritsu MS2080A-0706 (1 pc.)
Li-ion battery (installed inside the analyzer) (1 pc.)
soft case for carrying the analyzer (1 pc.)
external power supply (1 pc.)
Ethernet cable, 2 meters (1 pc.)
USB cable, 1 meter (1 pc.)
cable SMA(m) - BNC(m), 1 meter (1 pc.)
adapter SMA(m) - BNC(f) (3 pcs.)
user manual in electronic form
calibration certificate
1 year warranty

Additional options

Anritsu MS2080A-0199
Product code: 1025006
On order Expert selection

Adds real-time analysis capability with 20 MHz bandwidth. If option MS2080A-0102 is also installed, the real-time analysis bandwidth is 40 MHz.

Price on request
Anritsu MS2080A-0024
Product code: 1025002
On order Expert selection

Interference finder. Includes AM/FM audio demodulation of interfering signals, interference hunting tone for direction finding and geolocation of interferes on a digital map.

Price on request
Anritsu MS2080A-0031

Product code: 1025003
On order Expert selection

GNSS (GPS) receiver. Provides binding of measurements to coordinates, and also increases the accuracy of the internal reference generator. Supports systems: GPS, GLONASS and Galileo.

Price on request
Anritsu MS2080A-0102

Product code: 1025005
On order

40 MHz analysis bandwidth. Increases signal analysis bandwidth from 20 MHz to 40 MHz. If option MS2080A-0199 is also installed, the real-time analysis bandwidth will increase to 40 MHz.

Price on request
Anritsu MS2080A-0509

Product code: 1025011
On order

AM/FM modulation measurements. Includes a wide range of functions for measuring the characteristics of analog transmitters with amplitude and frequency modulation.

Price on request
Anritsu MS2080A-0888

Product code: 1025013
On order

5G NR downlink measurements. Includes a wide range of functions for measuring the performance of 5G networks. Requires option MS2080A-0031.

Price on request
Anritsu MS2080A-0883

Product code: 1025012
On order

LTE FDD/TDD measurements. Includes a wide range of functions for measuring the performance of LTE networks. Requires option MS2080A-0031.

Price on request
Anritsu MS2080A-0431

Product code: 1025009
On order

Mapping coverage areas of 5G and LTE networks using various metrics: RSSI, RSRP, RSRQ, SINR, etc. Requires option MS2080A-0031.

Price on request
Anritsu MS2080A-0444

Product code: 1025010
On order

Support for external 2000-1800-R, 2000-1792-R and 2000-1791-R isotropic antennas for accurate electric field strength measurements in the frequency range from 9 kHz to 6 GHz.

Price on request
Anritsu MS2080A-0019
Product code: 1025001
On order

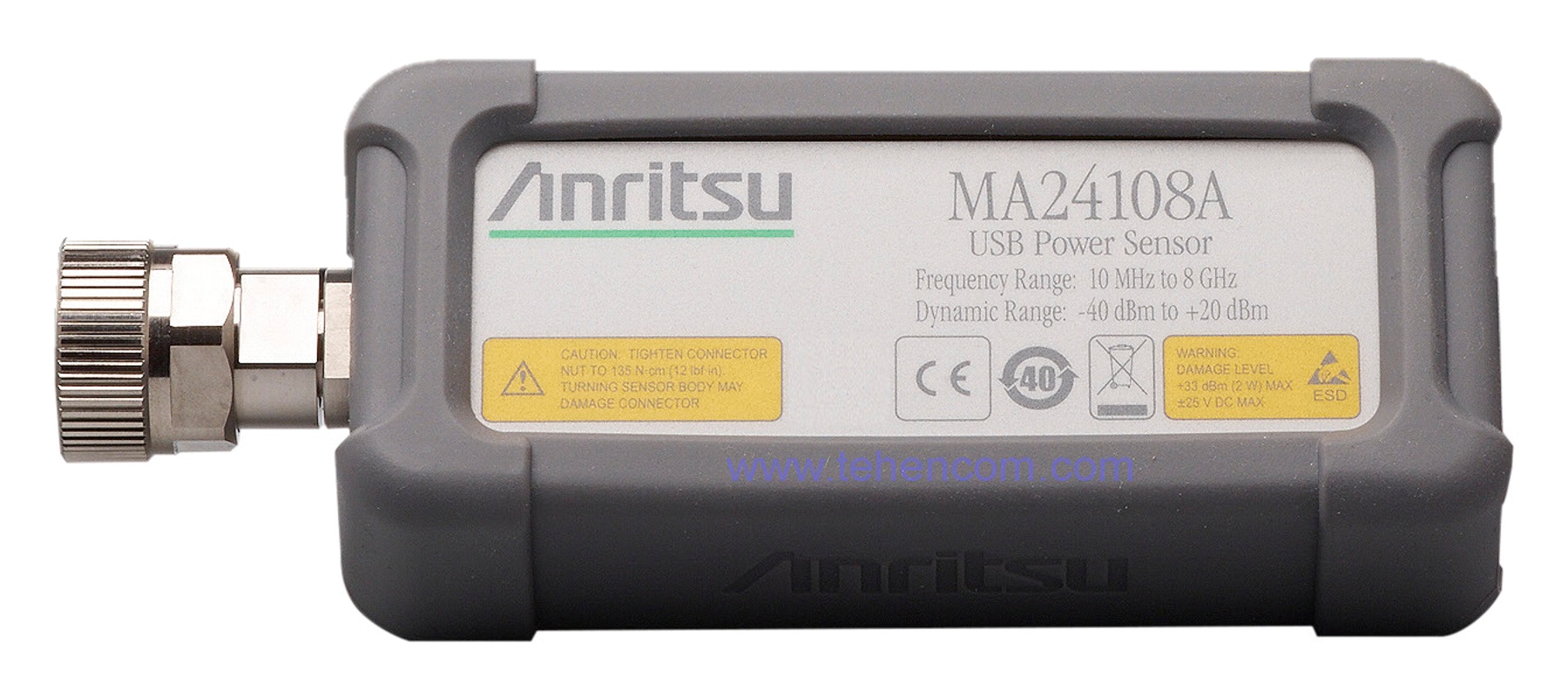

Support for external USB sensors of the MA241xxA, MA242xxA and MA243xxA series for accurate signal power measurements up to 50 GHz.

Price on request
Anritsu MS2080A-0090

Product code: 1025004
On order

Gated sweep. Allows to synchronize sweep with a certain event so that the analyzer collects data at the appropriate time.

Price on request
Anritsu MS2080A-0400

Product code: 1025007
On order

The ability to remotely control the spectrum analyzer using Vision software for long-term, automated measurements.

Price on request
Anritsu MS2080A-0407

Product code: 1025008
On order

Possibility of automatic scanning using Vision software of a large number of spectral channels.

Price on request

Additional accessories

Aaronia HyperLOG 7060
Product code: 1070003
On order Top sales

Directional log periodic antenna. Frequency range from 700 MHz to 6 GHz. Typical gain 5 dBi. Connector SMA(f). Dimensions: 340 x 200 x 25 mm. Weight 270 grams.

From 29 640 UAH
Aaronia BicoLOG 30100
Product code: 1070008
On order Top salesExpert selection

Directional biconical antenna. Frequency range from 30 MHz to 1 GHz. Typical gain from -39 dBi to 1 dBi. Connector SMA(f). Dimensions: 350 x 160 x 140 mm. Weight 350 grams.

From 47 880 UAH
Aaronia MDF 9400
Product code: 1070012
On order Top salesExpert selection

Directional passive loop antenna for magnetic field. Frequency range from 9 kHz to 400 MHz. Maximum gain -60 dBi. Connector SMA(f). Dimensions: 180 x 180 x 50 mm. Weight 180 grams.

From 41 040 UAH
Aaronia 501/006

Product code: 1080002
On order Top sales

High frequency cable. Connectors SMA(m) – SMA(m). Length 1 meter. Up to 6 GHz, 50 Ohm. Attenuation at 6 GHz: 3 dB/m. Maximum VSWR at 6 GHz: 1.3. Convenient plastic nuts.

From 1 962 UAH
Aaronia 501/053

Product code: 1080003
On order Expert selection

High frequency cable. Connectors SMA(m) – SMA(m). Length 2 meters. Up to 26 GHz, 50 Ohm. Attenuation 2.6 dB/m. Maximum VSWR at 6 GHz: 1.1. Convenient plastic nuts.

From 8 208 UAH
Aaronia 502/009

Product code: 1080001
On order

High frequency adapter. Connectors SMA(f) – N(m). Up to 18 GHz, 50 Ohm. Dimensions: 30 x 20 x 20 mm.

From 1 644 UAH
